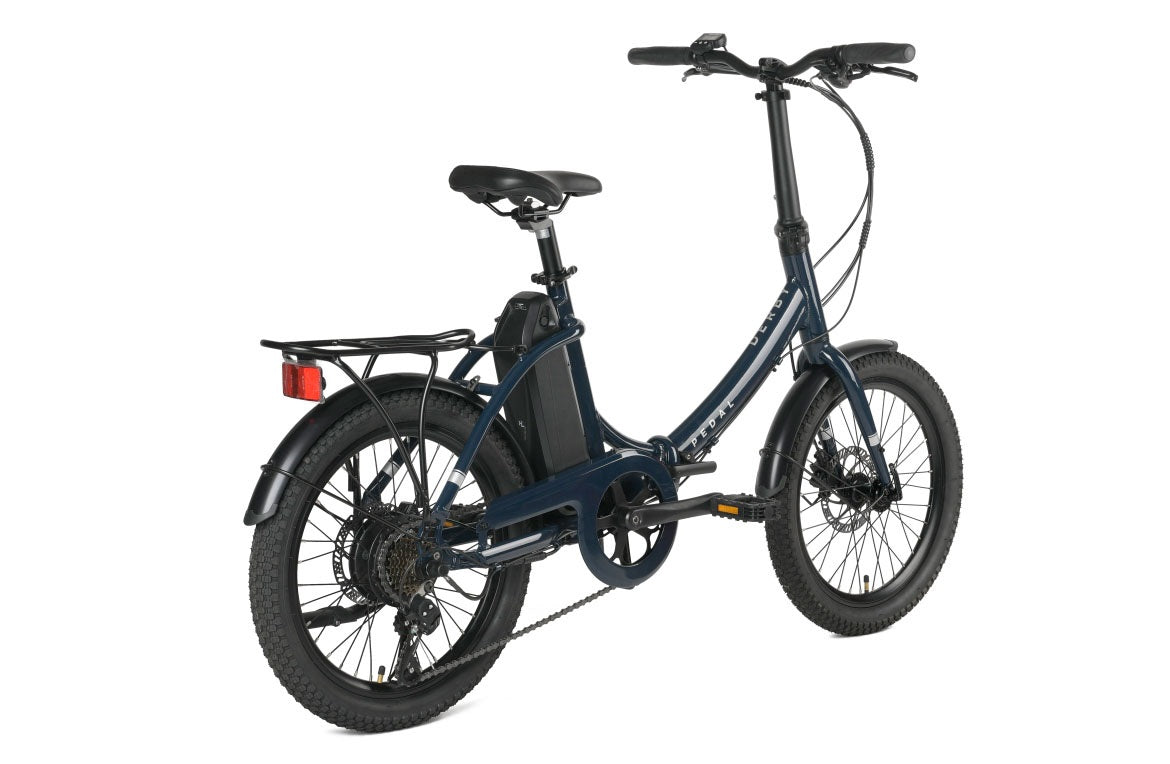

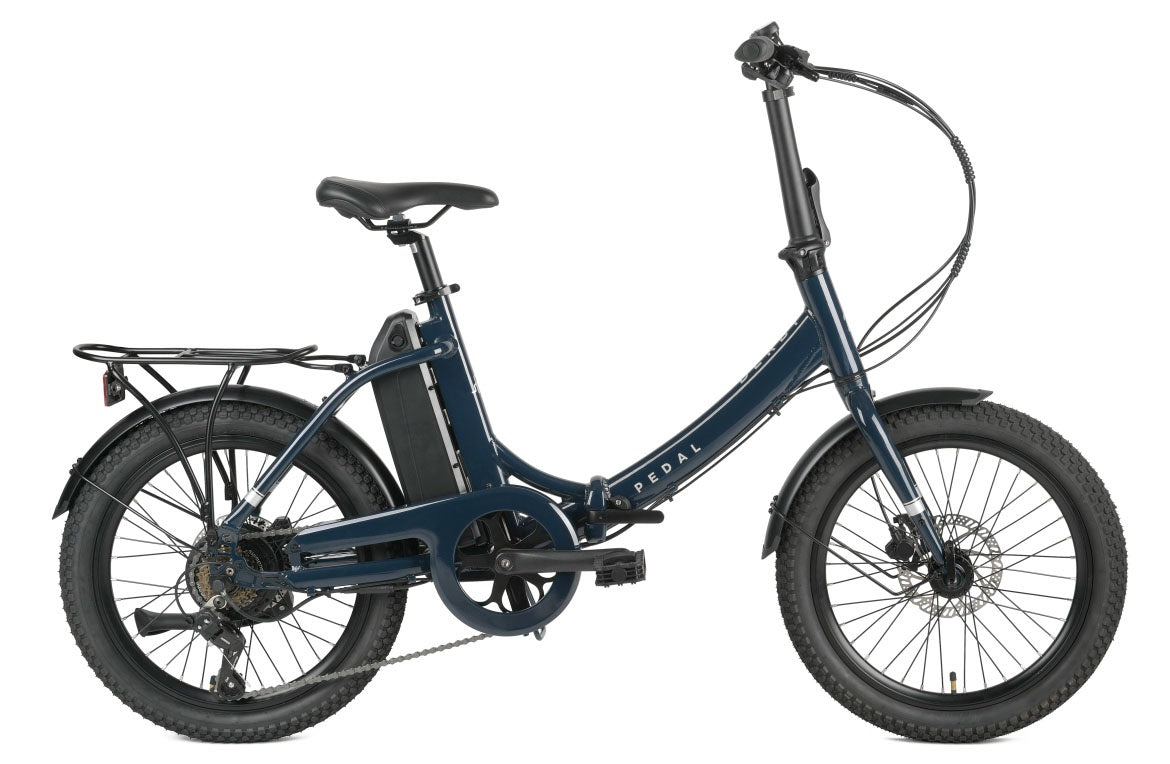

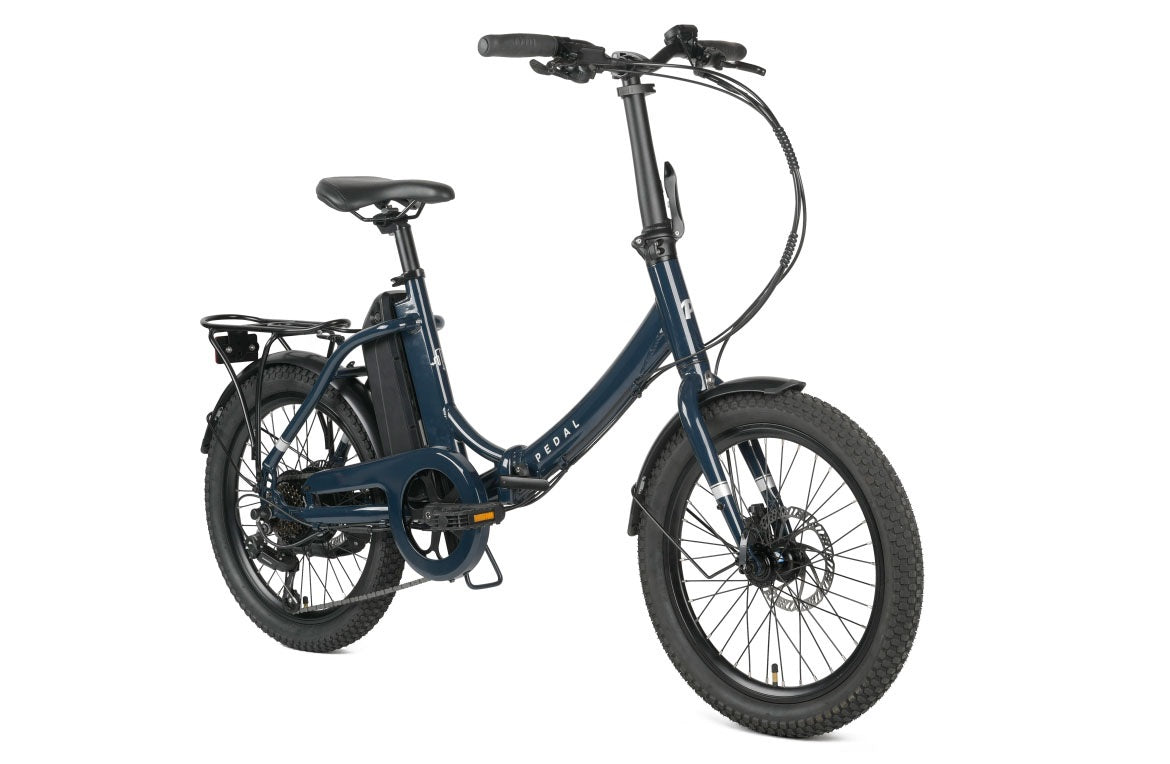

PEDAL DERBY - EASILY TRANSPORTED FOLDING EBIKE
Specifications
FRAME MATERIAL |
ALLOY |
FRAME DESCRIPTION |
FOLDING STEP THROUGH ALLOY 6061 POD BATTERY |
FRAME STYLE |
FOLDING |
FORK MATERIAL |
STEEL |
FORK BRAND |
PEDAL |
FORK DESCRIPTION |
RIGID STEEL |
DERAILLEUR FRONT |
1X |
DERAILLEUR REAR |
SHIMANO TOURNEY 7 SPEED |
GROUPSET |
SHIMANO MIXED |
SHIFTERS |
LTWOO TRIGGER 7 SPEED |
BRAKES |
TEKTRO HD-M275 |
BRAKE TYPE |
HYDRAULIC DISC BRAKE |
ROTOR FRONT |
160MM 6 BOLT |
ROTOR REAR |
160MM 6 BOLT |
CRANKSET AND FRONT CHAINRINGS |
52T - ED STEEL W/DOUBLE CHAINRING, 170MM ALLOY ARM |
BOTTOM BRACKET |
SEALED BSA CARTRIDGE 119MM |
CHAIN |
KMC Z7 116L |
PEDALS |
FOLDING PLASTIC 9/16" |
REAR GEARS |
7 SPEED |
CASSETTE DESCRIPTION |
SHIMANO TZ500 14-28T |

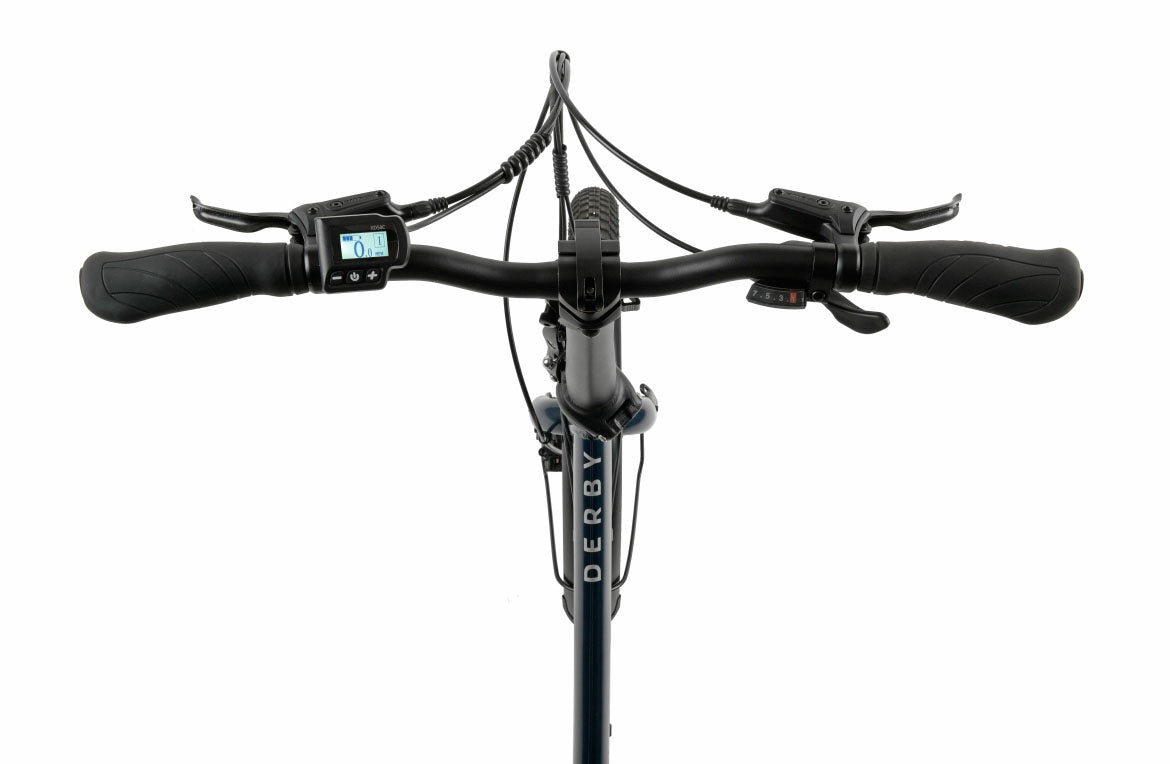

HANDLEBAR |
DNF-A806 ALLOY 600MM 30MM RISE 6 DEG SWEEP |
HANDLEBAR STEM |
FH05W TELESCOPIC & FOLDING 160-240MM ALLOY |
HEADSET |
INTEGRATED 44MM |
GRIPS / BAR TAPE |
XL G78 125MM ERGO RUBBER |
SEAT POST |
350MM 30.9MM ALLOY SINGLE BOLT |
SADDLE |
QF3103 ERGO SADDLE |
FRONT AND REAR HUBS |
F: ALLOY LBB W/NUTTED 6 BOLT / R: ELECTRIC GEARED HUB MOTOR NUTTED |
FRONT AND REAR RIMS |
ALLOY DOUBLE WALL 20" 36H 13G |
FRONT AND REAR TYRES |
KENDA K1040 20X2.3 CITY TYRE |
WHEEL SIZE |
20" |
FENDER |
65MM PVC BLACK GLOSS |
ACCESSORIES (KICKSTAND, PANNIER RACK, CHARGER) |
KICKSTAND + 42V 2A CHARGER (3 PIN FOR 36V BATTERY) |
DRIVE UNIT LOCATION |
REAR WHEEL |
DRIVE UNIT DESCRIPTION |
REAR PLANETARY DRIVE |
MOTOR POWER (WATTS) |
250 |
MOTOR TORQUE (NM) |
30 |
BATTERY DESCRIPTION |
REMOVABLE POD BATTERY 36V |
BATTERY SIZE (WATT-HOURS) |
374 |
CHARGE TIME (HOURS) |
5 |
DISPLAY |
KD-58C |
ASSIST MODES |
5 MODES |
RANGE (KMS) |
50 |
IP RATING |
IP54 |
WEIGHT LIMIT |
100KG |
Please note - specifications subject to change without prior notice.
Geometry
Frame Name |
Pedal Derby |
Frame Size Name |
UNI |
Tyre Sizes |
20 x 2.3" |
Top Tube Length |
554 |
Seat Tube Length |
406 |
Head Tube Length |
160 |
Seat Tube Angle |
72 |
Head Tube Angle |
69 |
RC Length |
413 |
BB Drop |
25 |
Fork Rake / Offset |
40 |
Front Center |
- |
Wheelbase |
1067 |
Fork Length, Full |
325 |
Need an easy way to get around once you have actually got to the place you want to cycle? A folding bicycle is a great way to take your bike with you in a vehicle, on a train, in the bus etc. A folding ebike allows you to go further than you can on your own steam or simply make you existing ride easier. There are many features to choose from when purchasing a bike. Our friendly team at Wollongong Bike Hub can help you navigate all the technologies so you can make the best bike buying decision.
