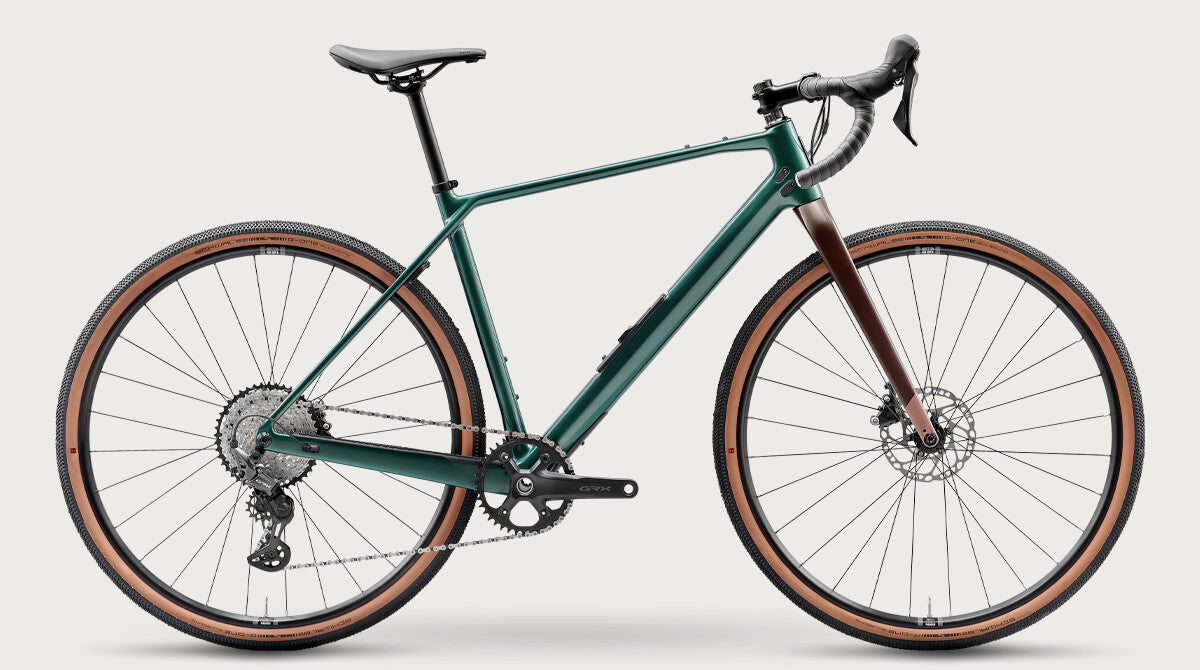

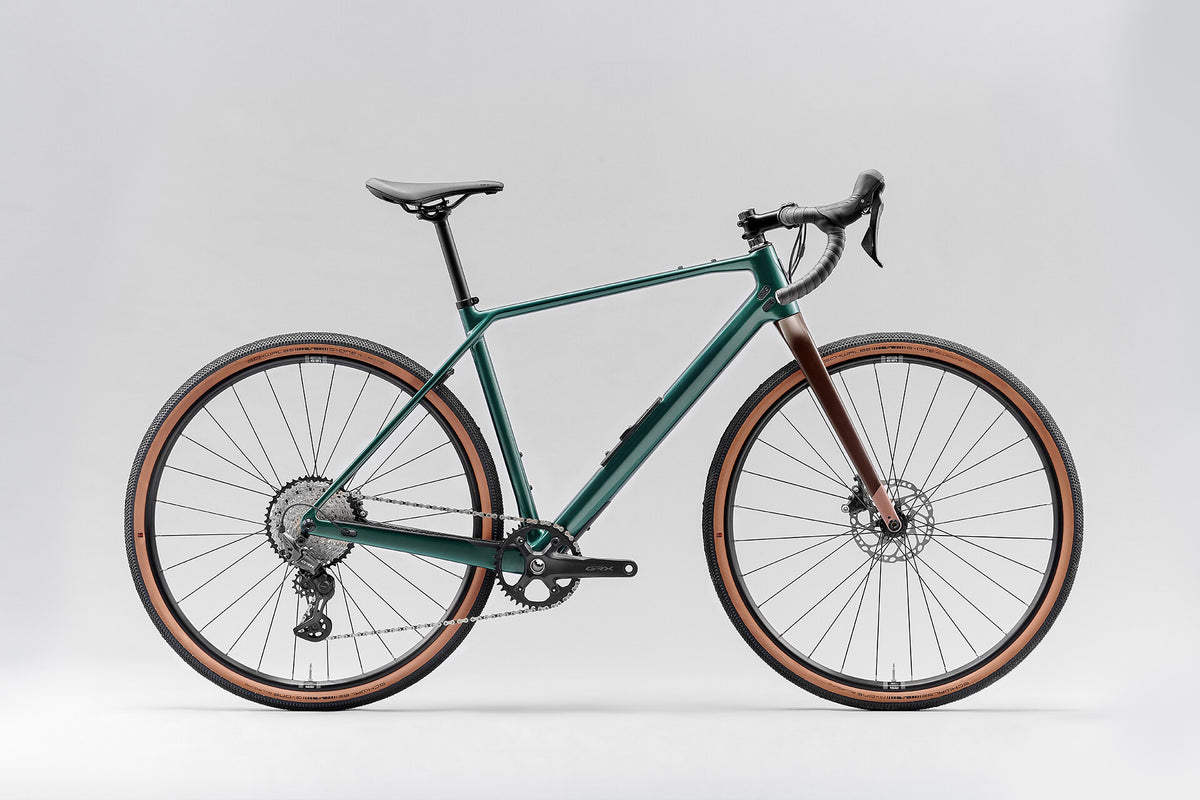

Norco Search C Grx 2025

Roaming or Racing?

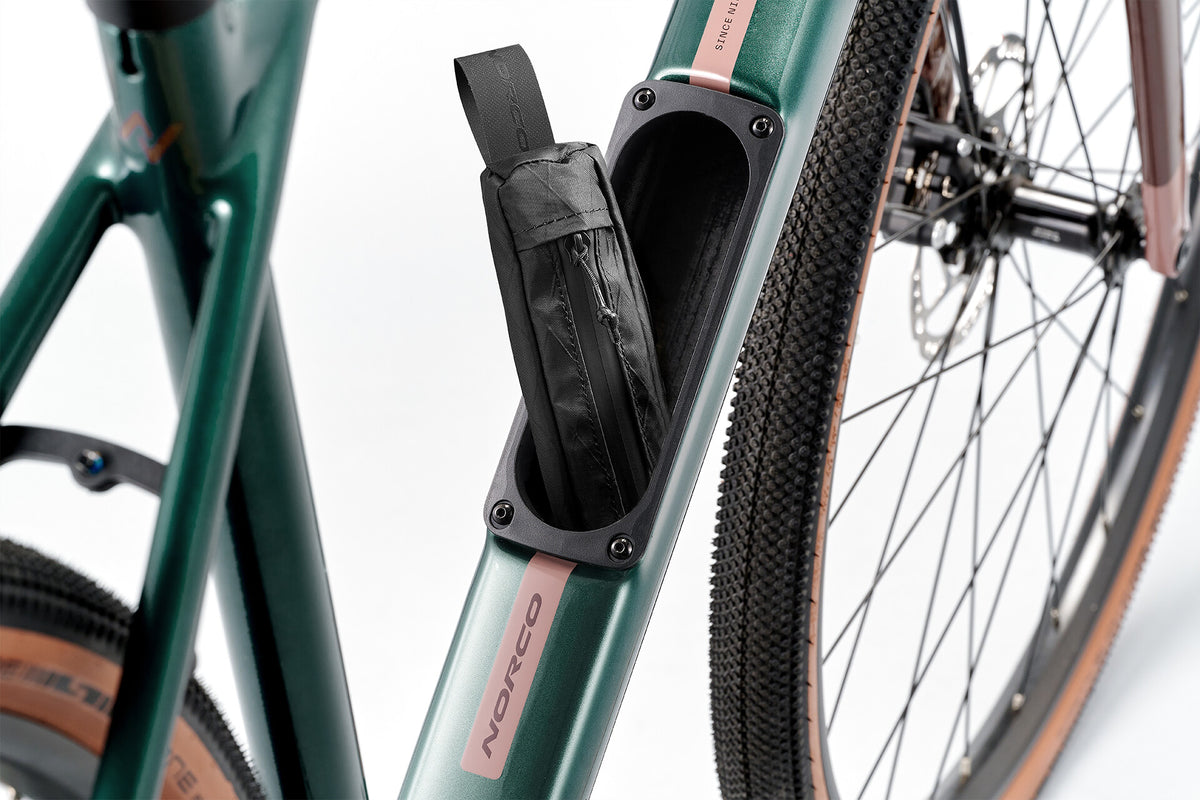

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search C GRX is ready for your next gravel adventure with modern gravel geo, a lightweight full carbon frame featuring Norco's proprietary downtube storage, tire clearance up to 50c, and full-coverage fender and toptube bag mounts.

New-School Gravel Features

Search C GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and the new geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

Specifications

Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

Frame Search Carbon w/ DT Storage, UDH Compatible

Fork Search Carbon, 51mm Offset, 12x100mm TA

Headset FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )

Grips Griptacular Shockproof Tape 3mm

Handle Bar Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree

Stem Norco SL Alloy 70mm Length, 31.8mm Clamp

Seat Post Norco Alloy, 27.2mm, 0Deg Offset, 350mm length

Seat Post Clamp Norco Aluminum, 31.8mm ID

Saddle Selle Royale SRX Gravel, 148mm

Front Brake Shimano BR-RX400, Resin w/o Fin

Front Brake Rotor Shimano SM-RT64, 160mm, c-lock

Rear Brake Shimano BR-RX400, Resin w/o Fin

Rear Brake Rotor Shimano SM-RT64, 160mm, c-lock

Brake Levers Shimano GRX ST610

Shifter Front Shimano GRX ST610, 1x

Shifter Rear Shimano GRX ST610, 12sp

Rear Derailleur Shimano GRX RD-RX822, 10-45T, 12sp, GS

Cassette Shimano CS-M7100, 10-45T, 12sp

Chain KMC X12

Crankset Shimano GRX FC-RX610 40T, 47CL, 165mm (S1,S2) - 170mm (S3,S4) - 172.5mm (S5)

Bottom Bracket Shimano BSA 68mm

Front Hub Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock

Rear Hub Shimano FH-TC500 Sealed Bearing, 12x142mm, Micro Spline, 28H, C-lock

Spokes/Nipples Double Butted, Black Alloy

Rims WTB ST i25 2.0, 28h, 25mm ID

Wheelset WTB ST i25 TCS 2.0, tubless

Front Tire Schwalbe G-One All Round, Race Guard, 700x45c

Rear Tire Schwalbe G-One All Round, Race Guard, 700x45c

Sealant WTB TCS Tubeless Tire Sealant, 8oz/236ml

Valves WTB TCS Tubeless Valve, Brass

Rim Tape WTB TCS 2.0 Solid Strip

Accessories Norco Storage Bag - Ocean-X Water Resistant
