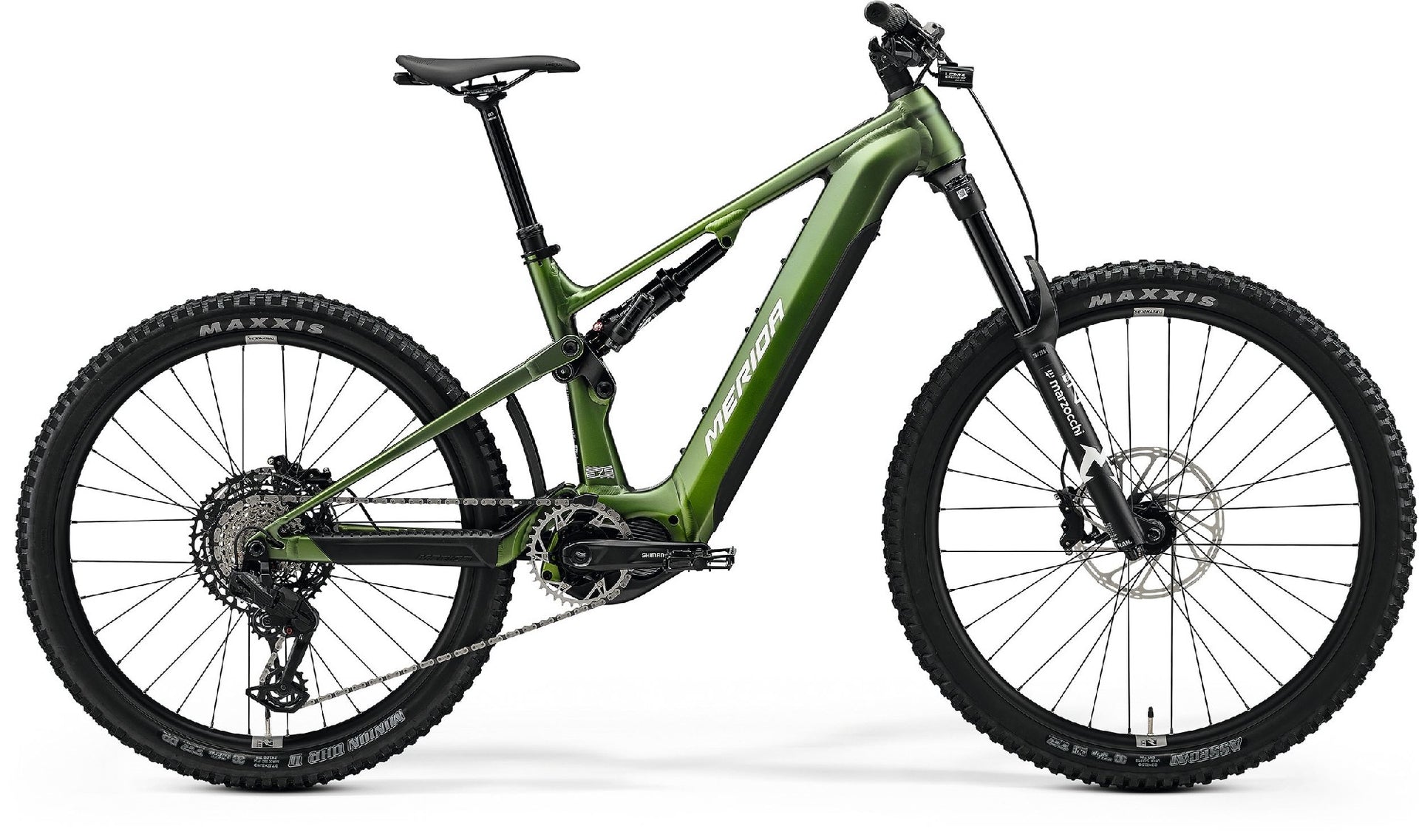

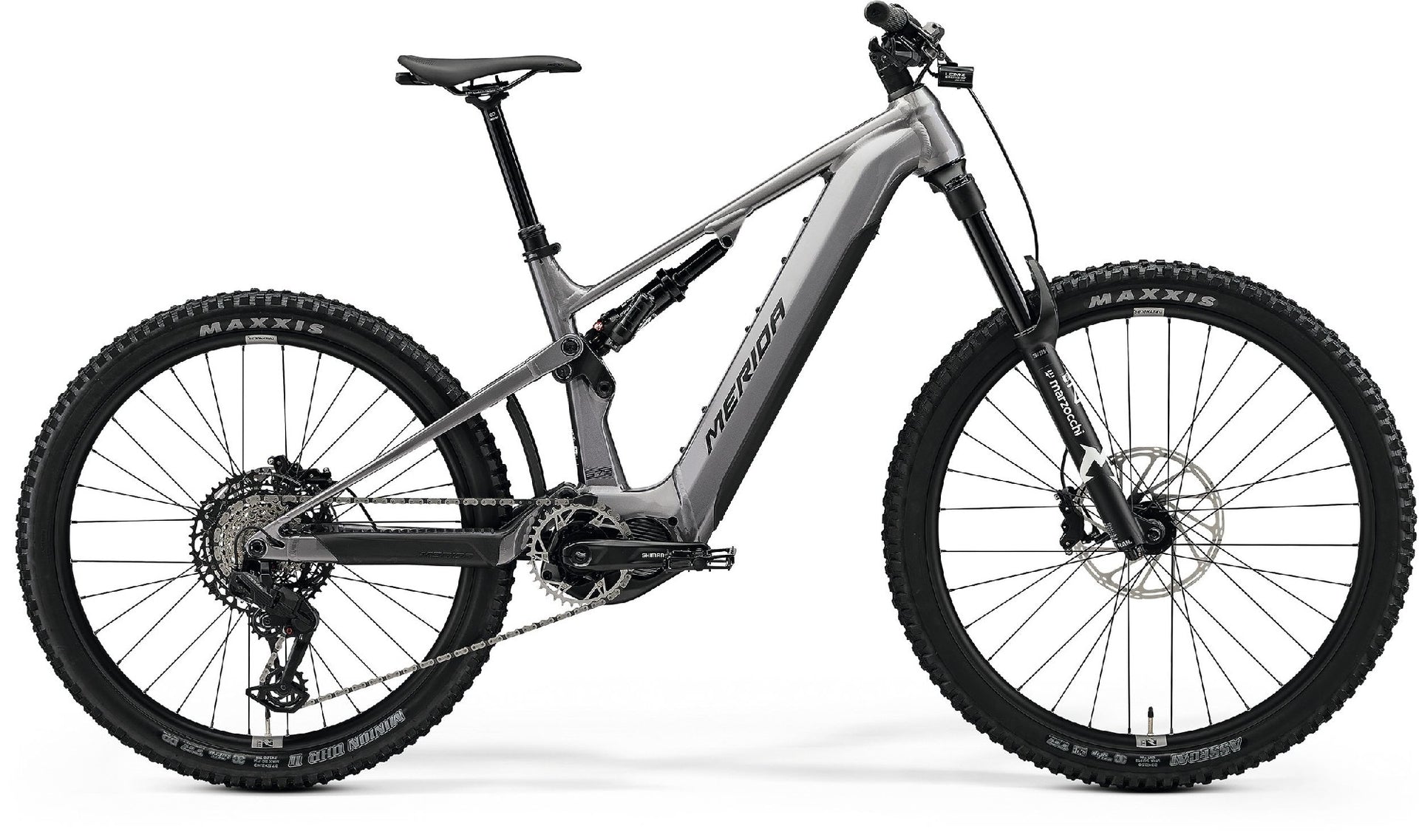

Merida Eone-sixty 675 2026

Huge Riding Range

Maximise your riding range while minimising your spend. Our hard-hitting aluminium frame gets our award-winning suspension and sizing, paired with a 712 Wh removable battery and optional range extender. Add in Marzocchi suspension and a tough SRAM drivetrain, and you're set. Â

Keep Trails Under Control

Say hello to a huge range and ride fun without saying goodbye to your budget. The eONE-SIXTY 675 gets a durable aluminium frame and user-removable 712 Wh battery with an optional 360 Wh range extender, but we combine our award-winning handling and suspension with wallet-friendly kit to give you maximum bang for your buck. A stout Marzocchi Z1 170 mm fork and Bomber Air shock keep trail chaos under control, while the SRAM Eagle 70 direct-mount drivetrain is tough enough for e-bike use, day in, day out.Â

Key Features

• Fourth generation LITE aluminium frame with 174 mm rear wheel travel
• Marzocchi Z1 fork with 170 mm travel and Bomber Air rear shock
• Crisp and tough SRAM Eagle 70 drivetrain and MERIDA tubeless-ready wheelset
• User-removable 712 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
• Mixed wheel size as standard with option to full 29"
• Reach-based AGILOMETER sizing system with long-travel dropper posts on all sizes

Specifications

Please note Specifications subject to change without notice

brakes Sram DB6 stealth

frame eONE-SIXTY LITE IV

frame size XShort, Short, Mid, Long, XLong

fork Marzocchi Z1 eMTB

color Gunmetal Grey/Black / Silk Fog Green/White

shock Marzocchi Bomber Air

drive unit Shimano EP801

display Shimano SC-EM800

battery lock Abus key

battery Shimano EN817

derailleur (r) Sram Eagle 70 Transmission

rotors Sram CenterLine

shifter front Sram Dropper Lever MMX

shifter rear Sram Eagle 70 Transmission Shifter

brake front Sram DB6 stealth

brake rear Sram DB6 stealth

chainwheel Sram XX Eagle Transmission E-MTB for Steps

chain Sram Eagle 70

crank Shimano FC-EM600

hub front Novatec SL-ELITE D041SB-B15

hub rear Novatec SL-TEAM D462SB-S3S-B12-11S

rim Reynolds 309 Enduro Comp

freewheel Sram CS XS 1270 T-TYPE 10-52

tyre front Maxxis Assegai

tyre rear Maxxis Minion DHR II

spokes Black stainless

handlebar stem MERIDA EXPERT eTR II

handlebar MERIDA EXPERT eTR

headset Acros ICR MERIDA EXTERNAL neck w/ Blocklock

seat post MERIDA EXPERT TR II

saddle MERIDA COMP SL

fender EOF-204

approx. weight 26.1 kg

light front Lezyne Hekto StVZO E350+ Reverse

light rear LEZYNE LED FEMTO USB-C REAR STVZO

max. weight 140 kg
