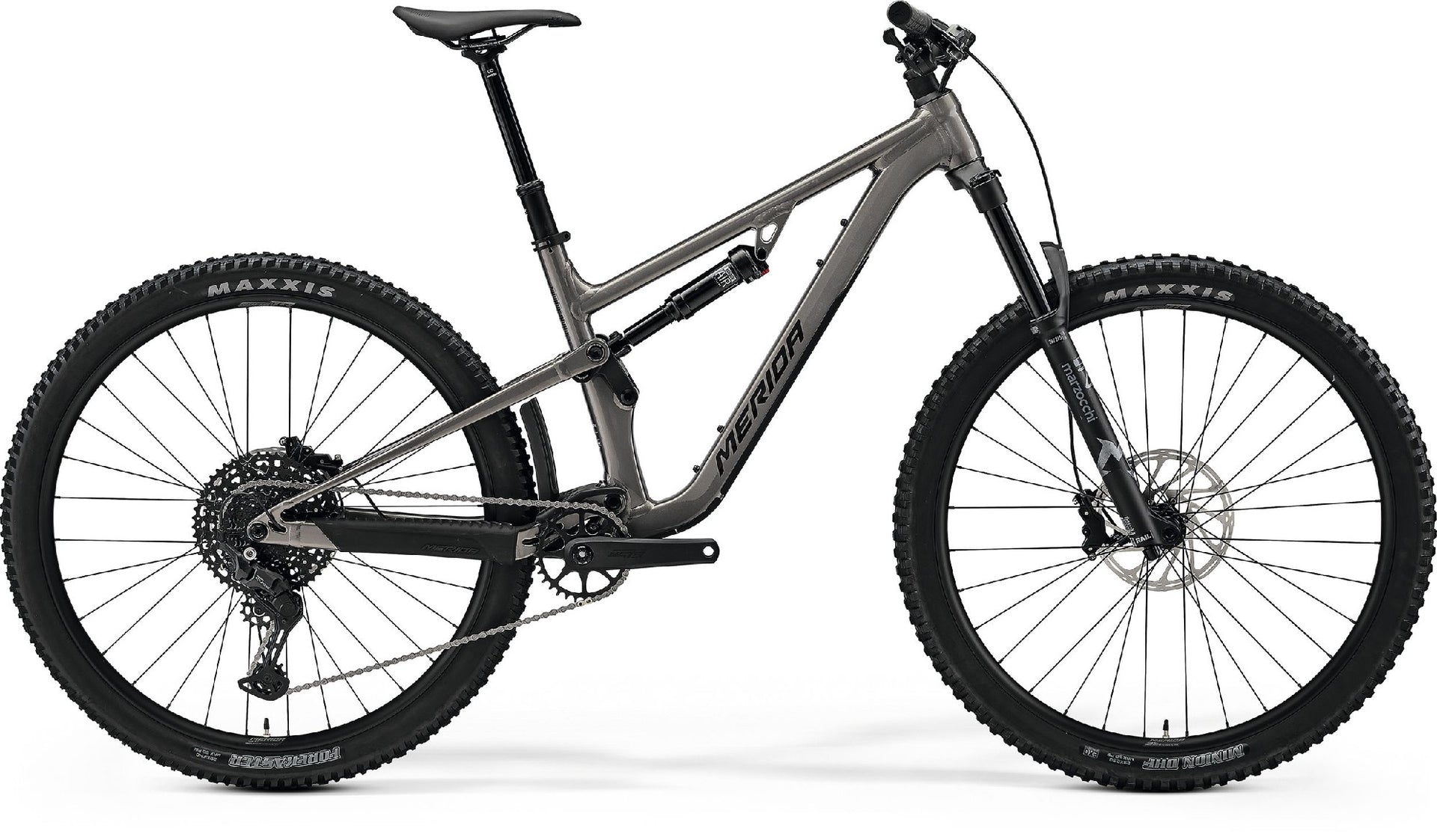

Innovative Performance Trail Bike

It features the same innovative trail bike geometry as its pricier counterparts but is equipped with an all-aluminum frame and components, offering the performance you need without the hefty price tag.

The ONE-FORTY 400 offers exceptional climbing and descending abilities in an affordable package centered around our renowned aluminum frame. It shares the same innovative design as its pricier counterparts but comes with equipment that provides essential performance at a lower cost. Every model includes a dropper post, a wide-range 11-speed Shimano drivetrain, and straightforward Marzocchi suspension that efficiently handles the task.

Why the Merida One Forty 400 Will Be Your Best Trail Buddy

The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focused on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.

Features We Love About this Merida Bike

• Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
• Radical trail geometry with full 29er wheels
• Marzocchi suspension, 150 mm front, 143 mm rear
• Durable, wide-range Shimano CUES 11-speed drivetrain
• 230 mm dropper post on XLong, 200 mm on Long, 170 mm on Mid and 150 mm on Short and XShort
• Powerful 4-piston SRAM DB4 hydraulic disc brakes

Are Merida Bikes Good?

That's a great question and one we're often asked. The answer is a resounding yes. Merida Bikes are a winning combination of design, materials and build quality that offer exceptional value for money across the entire range. We are proud to sell Merida bikes at Wollongong Bike Hub where our friendly team are on hand to help you choose the best bike and accessories to suit your ride style and your budget.

Specificatons

Specifications subject to change without prior notice

brakes Sram DB4

frame ONE-FORTY LITE III

frame size XShort, Short, Mid, Long, XLong

fork Marzocchi Z2

shock Marzocchi Bomber inline

derailleur (r) Shimano CUES U6000

rotors Sram CenterLine

shifter rear Shimano CUES U6000

brake front Sram DB4

brake rear Sram DB4

chain KMC xGlide

crank MERIDA Expert TR II

hub front Shimano TC500-B

hub rear Shimano TC500-HM-B

rim MERIDA COMP TR II

freewheel SunRace 10-50t CS-UX400 EA5

tyre front Maxxis Minion DHF

tyre rear Maxxis Forekaster

spokes Black stainless w/black nipples

handlebar stem MERIDA COMP TR

handlebar MERIDA COMP TR

headset Acros ICR MERIDA EXTERNAL neck

seat post MERIDA EXPERT TR II

saddle MERIDA COMP SL
