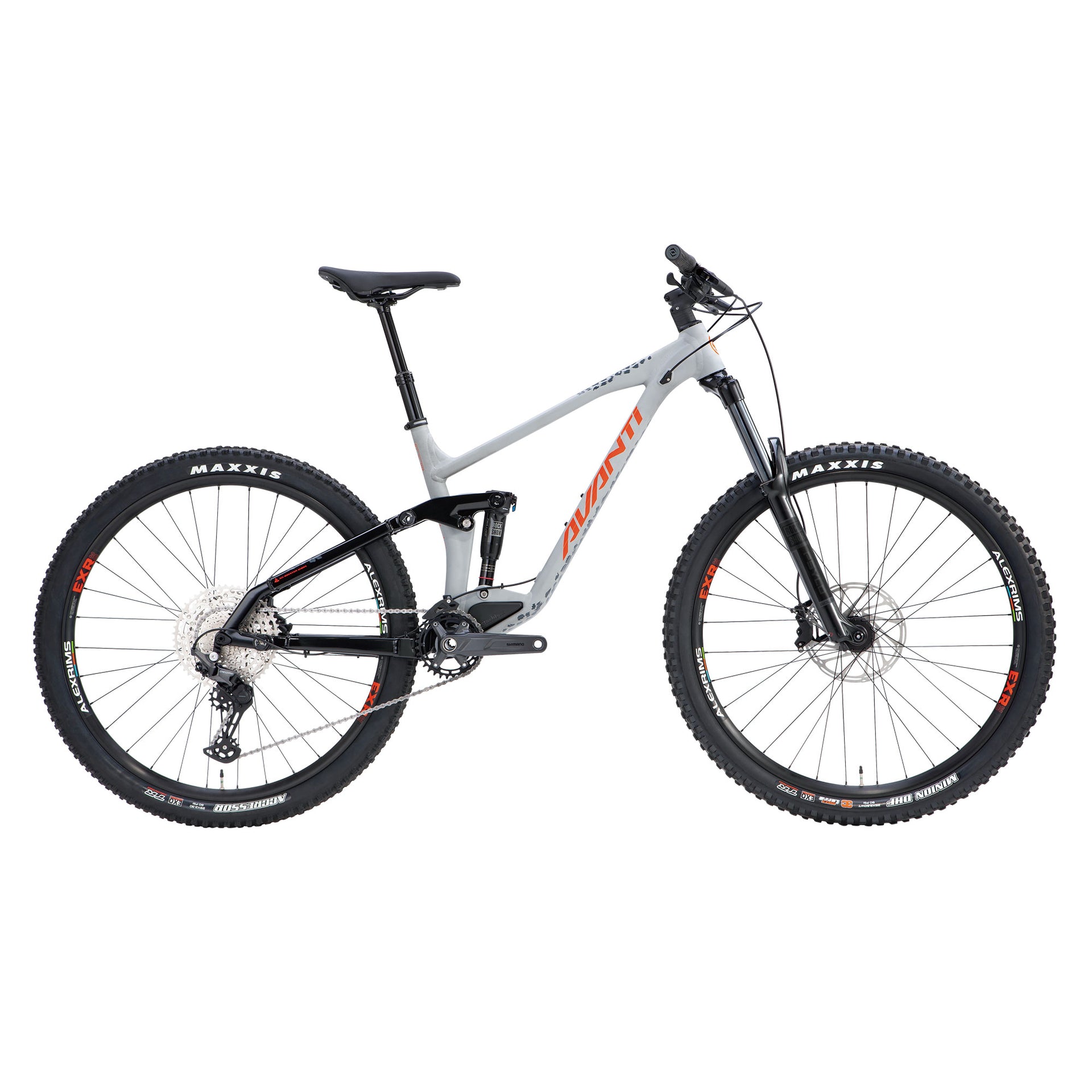

Avanti Hammer Lt1 2026

Light & Tough Dual Suspension for Steep, Aggressive Terrain

The Hammer LT range of 160/145mm trail bikes, are engineered in Germany to be light, but tough enough to handle steeper and more aggressive terrain than our Hammer S line.

Small frame size bikes features 27.5 wheels for lower standover and all bikes in the range feature Rockshox front and rear suspension, long-travel Syncros dropper posts, 4-piston hydro brakes and 12 Shimano speed drive trains. Added to that, LT’s feature our ‘Stashbox’ in the frame which is fully equipped with all the quality Syncros mini tools you need out on the trail.

Key Features
German-engineered tough alloy 145mm travel frame with ‘Stash Box’ fully equipped with Syncros trail tools

Tough Rockshox air sprung suspension front and rear

Shimano Deore 12 speed components for bullet proof shifting

SRAM Db8 hydraulic 4 piston brakes

Full Syncros cockpit with internally routed dropper post

All specifications subject to change

Frame:

AL-6061 Ultralight Butted tubing, 145mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m, stash box with tools

Fork:

Rockshox Psylo Silver RC Air, 160mm, air spring, 1.5" taper, fixed rebound, lock-out, Boost 110x5mm axle – S=27.5, M/L/XL=29er

Travel:

160/145mm

Rear Shock:

Rockshox Delux Select + Debon Air, rebound adjust

Rear Deraileur:

Shimano Deore 12sp with Clutch

Shifter:

Shimano Deore 12 speed

Crankset:

Shimano Deore class, 32T

Chainguide:

Yes

BB-Set:

Shimano Pressfit

Chainring:

32T Narrow/Wide

Chain:

Shimano Deore

Cassette:

Shimano Deore Cassette, 10-51T, 12 speed

Brake Levers:

SRAM DB8 hydraulic

Brakes:

SRAM DB8 4-Piston hydraulic, 200mm front/180mm rear 6-bolt rotors

Handlebar:

Syncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep

Headstem:

Syncros FL 20 31.8, 6 deg rise

Grips:

Syncros Pro Lock-on

Seatpost:

Syncros Duncan Dropper 31.6mm with internal cable routing

Saddle:

Syncros ER2.5

Headset:

Integrated Threadless 1 1/8th – 1.5" (with extra lower geometry adjust cup for 27.5+ )

Hubs:

Fr: Formula Boost Sealed Bearing 110×15 32H, Rr: Formula Boost Sealed Bearing 148×12 32H

Spokes:

Stainless steel

Rims:

Alex EXR 30 Double-wall Alloy with eyelet 32H, Tubeless Ready

Tyres:

Fr: Maxxis Minion DHF 3CMaxxTerra/EXO 2.5"; Rr Maxxis Aggressor, 3CMaxxTerra/EXO 2.3" (2.5" on S size). Foldable, Tubeless Ready

Accessories:

Stash Box' in frame is fully equipped with Syncros trail tools, MINI chain guide
