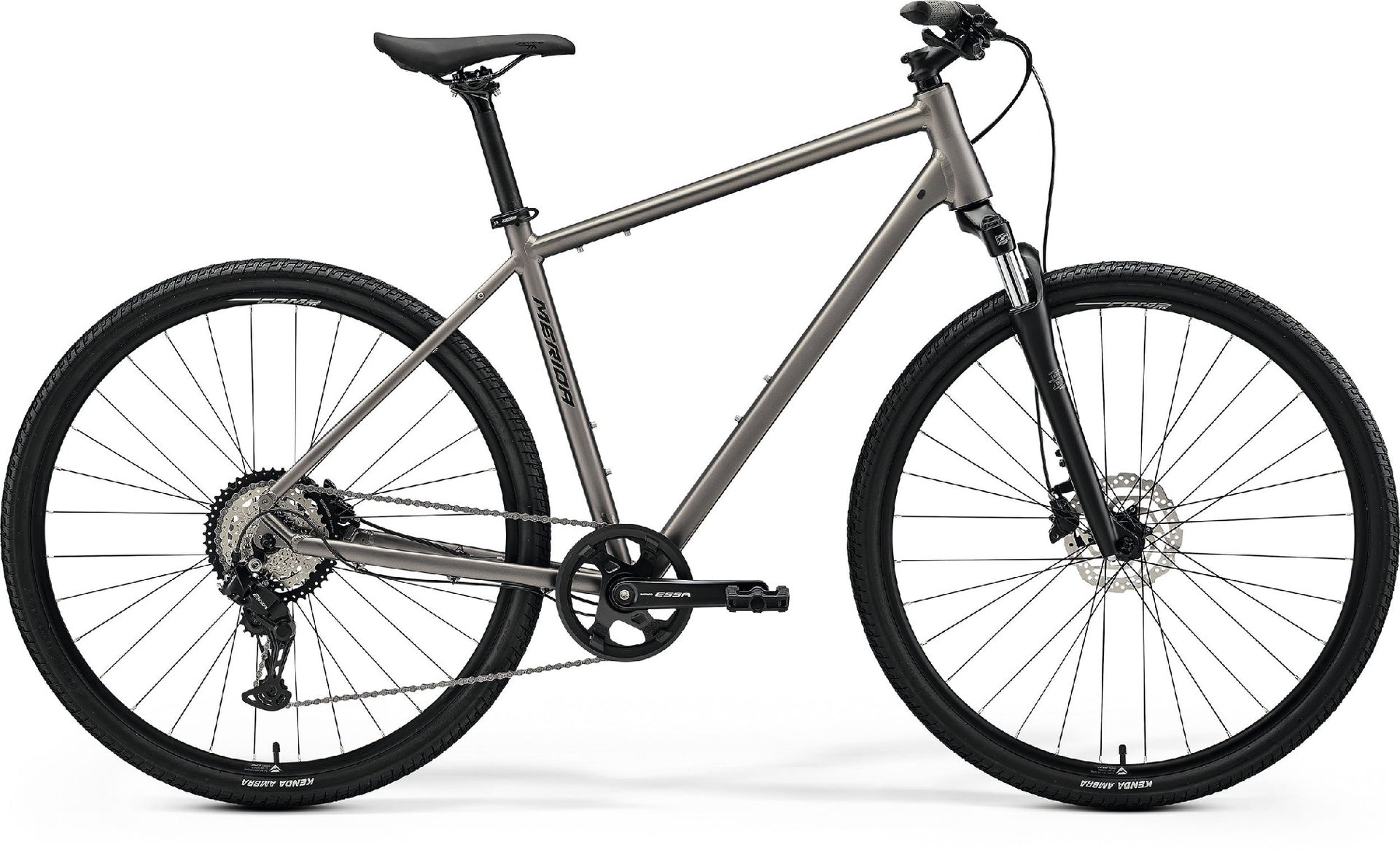

Explore the Merida Crossway 20 Hybrid Bike

Hydraulic disc brake and suspension fork-equipped trekking/hybrid bike at an attractive price. Your reliable disc brake-equipped companion for town or country, now with higher volume tyres for better comfort.

Comfort, Control and Style - What More Could You Want?

• Comfort - 45 mm tyres and a suspension fork, ensure this bike is equally comfortable on country paths at the weekend as it is on a daily work commute, fitness training or leisurely rides anywhere.
• Control - Equipped with powerful, low-maintenance disc brakes that offer reliable stopping power, whatever the conditions or weather.
• Style - Hybrid style bikes offer a blend of MTB and road bike to give you the best of both worlds. They offer a more upright seating position than a road bike along with gearing and wider tyres borrowed from the MTB scene. Attention to detail means the Crossway 20 also looks great.

In Summary

The CROSSWAY family is Merida bikes versatile and proven way of getting around. Suitable for fitness training, commuting and leisurely rides through forests and on trails, they are designed to provide a comfortable place to take in the surroundings thanks to an upright riding position. Comfort-focused equipment such as a suspension fork offers the perfect blend of comfort, enjoyment and all-round functionality. An updated, high-quality aluminium frame now offers greater clearance for 50mm tyres on 700c wheels so you can cover ground quickly with added puncture protection, grip and comfort. With the ability to mount mudguards, racks and kickstands (available separately as the EQ kit), the CROSSWAY range is the perfect choice for everyday riding. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.

Why Buy the Merida Crossway 20 Hybrid Bike?

Here are just some of the features that make buying this Merida bike a very good choice:

• Lightweight aluminium frame
• Comfort geometry
• 50 mm tyre clearance
• Lockable suspension fork with new bars and stem for extra comfort
• Hydraulic disc brakes
• Shimano ESSA 1x8-speed drivetrain
• Multiple fixing points for rear rack and fenders
• Full-equipment EQ kit available separately

Where Can I Get Backup Service for My Bike?

You receive 12 months FREE general service on all new bikes purchased from Wollongong Bike Hub. Your new bike will come fully assembled and ready to ride. Already have a bike? No problem, our mechanics can service and repair most brands and models of bicycles.

Specifications

Specifications subject to change without notification

BOTTOM BRACKET  Shimano UN101 LL123

BRAKES F: Shimano MT200 | R: Shimano MT200

CASSETTE Shimano CS-HG400-8; 11-45 ATC; 8 GER

CHAIN KMC Z8

CRANKSET Shimano Essa FC-U2001 40 ATC; MAT Aluminium; 170mm

DERAILLEUR REAR Shimano Essa RD-U2000-8; GS

FORK SR Suntour NEX DS; Coil; 63 STR; 700x50C max. WHS

FRAME CROSSWAY TFS IV; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR

GRIP  MERIDA COMP TK

HANDLEBAR  MERIDA COMP CC; MAT aluminium; 680 WHB; 10 RHB

HANDLEBAR STEM  MERIDA COMP CC; MAT aluminium; 31.8 DSH; 17 ASD; 90 mm all sizes

HEADSET  MERIDA M2345

HUBS  F: Shimano TX505; 100x9 WHF; 32 SPH; Centerlock | R: Shimano TX505; 135x9 WHR; 32 SPH; Centerlock

PEDALS  VP VPE-891

RIM MERIDA COMP TK; 17 IWR; MAT aluminium

ROTOR FRONT  Shimano RT10; 160 mm

ROTOR REAR  Shimano RT10; 160 mm

SADDLE  MERIDA COMP TK

SEAT CLAMP  MERIDA COMP QR

SEAT POST  MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB

SHIFTERS  F: | R: Shimano Essa SL-315-8R

SPOKES  Black steel

TYRES F: Kenda Ambra K1278; 700x45C; wire | R: Kenda Ambra K1278; 700x45C; wire
